| System |
| CPU | 3855U/ I3-6100U/ I5-6200U/ I7-6500U /3865U/ I3-7100U/ I5-7200U/ I7-7500U |
| Chipset | In tel SOC |
| System Memory | 1*DDR4 2133 MHz SODIMM, Max 16GB |
| BIOS | Insyde SPI 64Mbit Flash |
| Storage | 1*2.5'' SATA HDD bay, support SATA3.0 6Gbps HDD/SSD, 1*mSATA |

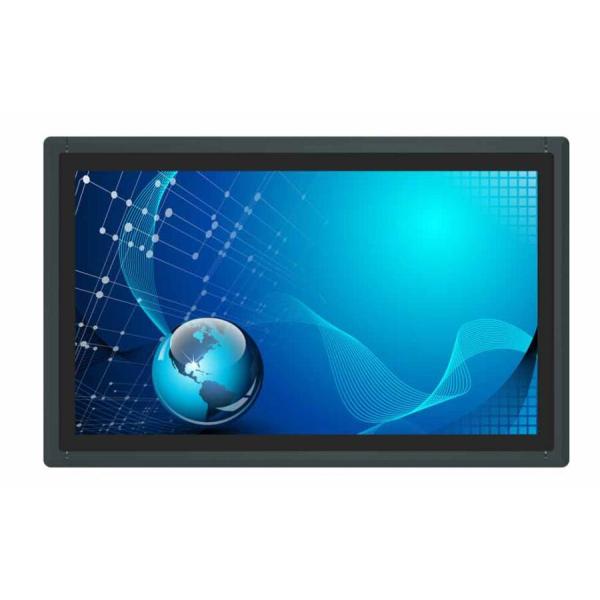

| Display | 21.5'' LCD |
| Touch | resistive touch/ PCAP touchsreen |
| Expansion | 1*Mini PCIe(PCIe and USB signal),Opt.1*32-bit PCI or 1*PCIe X1 |
| Real I/O | 4*COM:2*RS232, 2*RS232/422/485, DB9(when using PCI/PCIe,there are only 2*COM) 1*HD MI,1*Line out 4*USB3.0 Type A 2*RJ45 |
| Front I/O | 1*USB2.0 Type A |
| LAN | 2*In tel I210AT PCIe Gig. Ethernet, 10/100/1000Mbps |
| Audio | Realtek ALC662VD controller, Support 5.1 channel, 2*3W Speaker |
| Control SW | 1*Cmos,1*AT/ATX,Power button, 2–pin connecter with power switch signal,HDD LED |
| Power Supply | DC to DC: 9~36V input, consumption: TDP 12V/4.12A( I5–6200U CPU, 4GB DDR4) |
| OS Supply | Wins 7, Wins 8.1, Linux |
| Mechanical and Environmental |
| Construction | Aluminum die-casting front bezel and chassis, fin-shaped radiator shell |
| Operating Temperature | 0~50℃ -HDD(-10~55℃ -SSD ), with airflow |
| Storage Temperature | -20~60 ℃ |
| Operating Humidity | 10~95%@40, non-condensing |
| Shock | 10g peak acceleration(duration 11ms), in operating with HDD |
| Vibration | 1g 5~500Hz in operating with HDD |
| Mounting | Panel mounting, VESA 100*100 and 75*75mm |
| Dimension | (W*H*D):546.9*344.7*64.1mm; mounting cut out(W*H): 537.5*335.3mm |
| Net Weight | 8.15KG |
| EMC | CE, FCC Class A |
| LCD |
| Type | 21.5 'TFT LCDE |
| Resolution | 1920*1080 |
| Color | 16.7M colors |
| Pixel Pitch(mm) | 0.248*0.248 |
| Brightness(cd/m2) | 300 |
| Viewing Angle | 89 Degree(left), 89 Degree(right), 89 Degree(up), 89 Degree(down) |
| Operating Temperature | 0~50℃ |
| Backlight Lifetime | 50000 Hours |
| Touch |
| Type | 5 wire resistive touch / Projected capacitive touch |
| Resolution | gapless |
| Light Transmittance | 83% / 90% |
| Interface | USB |
| Consumption | +5V @ 200mA / +5V @ 300mA |
| OS | Wins or Linux |
| Click Lifetime | 15 million times / 3 billion times |
